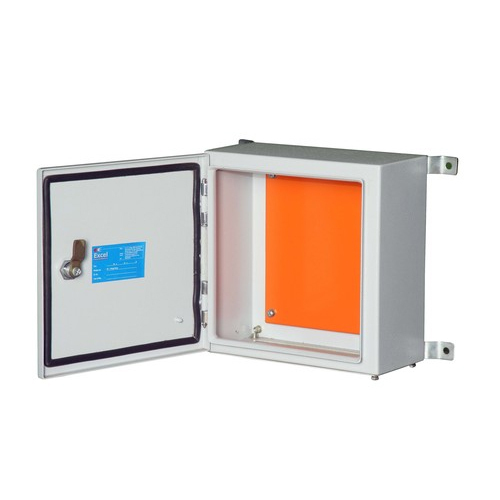

Machine Mounting Enclosures

Get a Price/Quote

MOQ : 1 Piece

Machine Mounting Enclosures Specification

Product Type
Machine Mounting Enclosure

Material
Mild Steel

Protection Level
IP65

Surface Treatment
Powder Coated

External Size
300 x 200 x 150 mm

Thickness
1.5 mm

Paint Finishing
Textured finish

Accuracy
0.3 mm

Dimension (L*W*H)
300 x 200 x 150 mm

Weight
4.2 kg

Color
Grey

Machine Mounting Enclosures Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
50 Pieces Per Day

Delivery Time
10-12 Days

Sample Available
Yes

Main Domestic Market
All India

About Machine Mounting Enclosures

Electrical Enclosures, Electronic Enclosures, Control Panel Boards, Sheet Metal cabinets / enclosures, Fabricated metal enclosures, Industrial Automation enclosures, enclosures for Process Control Equipment & Instruments, enclosures for Electronic Liquid Level Controllers & Indicators, Work stations, data rack, Stainless Steel Enclosures, Mild Steel Enclosures, Control Panel Enclosures, Analyzer Systems, crane enclosures, VFD enclosures.

Application Areas:

Smaller drive panels, PLC Panels, HMI panels, SPM Panels, Automation Panels, small server racks, small networking communication panels, MCC / PCC panels, UPS / Stabilizers Panels, Control Panel Enclosures, Analyzer Systems.

Features:

Welded body with sides, top and bottom closed in 1.5/2.00 thk folded CRCA sheet.
Base is optional.
Front single door / split doors / partial doors in 2.00 thk CRCA sheet. With support frame, sheet metal special hinges, cam locks.
Gland plate at bottom in 2.00 thk CRCA.
Component mounting plate in 2.00/3.00 as per requirement. Size (Width - 60) x (Height - 60) mounted on welded bushes at rearmost position.
These types of enclosures are not suitable to join together, however if needed we can join them.
As side walls are not removable, inter panel seperator is not required here.
Wall mounting brackets 4 nos per enclosure are supplied in 3.00 thk.
Polyethylene gasket on door and polyurethane foam on gland plate, both are fire retardant.
DIN standard 19 equipments mounting arrangement is possible.
Swing frames suitable for 19 mounting in width and height as per requirement.

Standard sizes of the enclosures in this design:

1 Width: 300mm -800mm in pitch of 100mm.
1 Depth: 200mm - 600mm in pitch of 50mm.
1 Height: 300mm - 1200mm in pitch of 100mm.
1 Base or stand height as per requirement.

Reliable Protection in Demanding Environments

Designed for industrial and electrical settings, this enclosure provides secure housing for sensitive components. With an IP65 rating and robust powder-coated mild steel, it shields against dust and water jets for uninterrupted operation. Its PU foam gasket and dual-locking system ensure integrity and peace of mind in challenging conditions.

Versatile Mounting and Customization Options

Offering wall and machine mounting flexibility, this enclosure fits a variety of installation scenarios. Knockouts for cable entry and available custom cutouts accommodate unique project needs. The 1.5 mm thickness and accurate 0.3 mm tolerances ensure consistent, secure integration with your automation or control systems.

FAQs of Machine Mounting Enclosures:

Q: How does the IP65 rating benefit my industrial applications?

A: The IP65 rating ensures the enclosure is dust-tight and protected against water jets, making it ideal for tough industrial automation and electrical environments where exposure to particles and moisture is common.

Q: What types of mounting options are available for this enclosure?

A: You can wall-mount or machine-mount this enclosure, offering versatility for various installation requirements in control panels or automated machinery setups.

Q: When should I choose custom cutouts for my enclosure?

A: Custom cutouts are recommended when your project requires specialized ports, switches, or connectors not covered by standard knockouts. They ensure your enclosure perfectly fits your unique installation needs.

Q: Where can knockouts for cable entry be found on this enclosure?

A: Knockouts are conveniently provided to allow flexible and straightforward cable entry from different points around the enclosure, simplifying wiring and reducing installation time.

Q: What process ensures the enclosures durability and finish quality?

A: The enclosure undergoes powder coating, which delivers a durable, textured grey finish that resists corrosion, scratches, and wear, ensuring a long-lasting and attractive appearance.

Q: How secure is the enclosure for housing sensitive components?

A: Equipped with two locks on a hinged door and a high-quality PU foam gasket, this enclosure ensures both security against unauthorized access and excellent environmental sealing.
